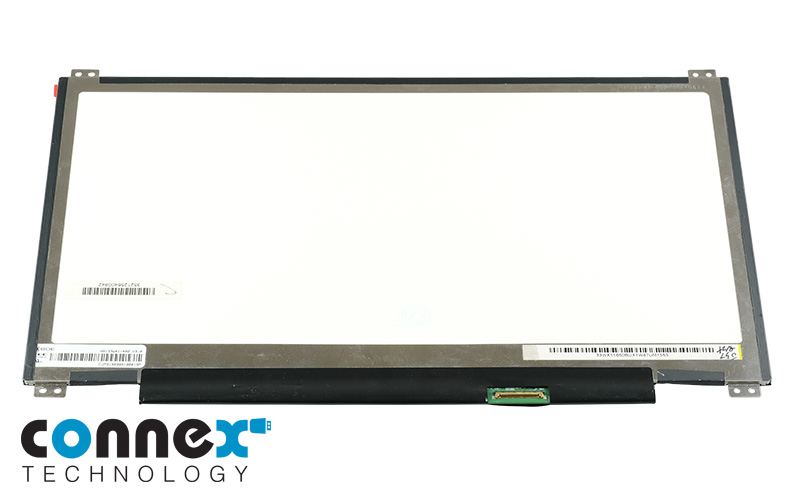

13.3" WXGA LCD Screen - 1366X768 - Bottom-Right 30-Pin eDP COnnector - Matte Surface - Slim Profile

Home > Products > LCD Panel > 13.3" > 133AP

13.3" WXGA LCD Screen - 1366X768 - Bottom-Right 30-Pin eDP COnnector - Matte Surface - Slim Profile - Top and Bottom Brackets

Item code:

133AP

stock level: Please contact us for stock availability

Detailed information:

Screen Diagonal:       13.3"
Resolution:       WXGA(1366X768)
Connector Type:       30-Pin eDP
Surface finish:       Matte
Connector Position:       Bottom-Right
Backlight type:       LED
Thickness Profile:       Slim

Note

Compared to 133AH, the mounting brackets are closer to the left-hand side and right-hand side edges

Product compatibillty

Compatiblie part number

L01077-001
809579-L31

BOE

HB133WX1-402
NT133WHM-N46

Innolux

N133BGE-EAB Rev.C1
N133BGA-EAB

AUO

B133XTN01.6 HW2A
B133XTN01.6 H/W:2A

Can be used with the following device(s)

ProBook 430 G5
