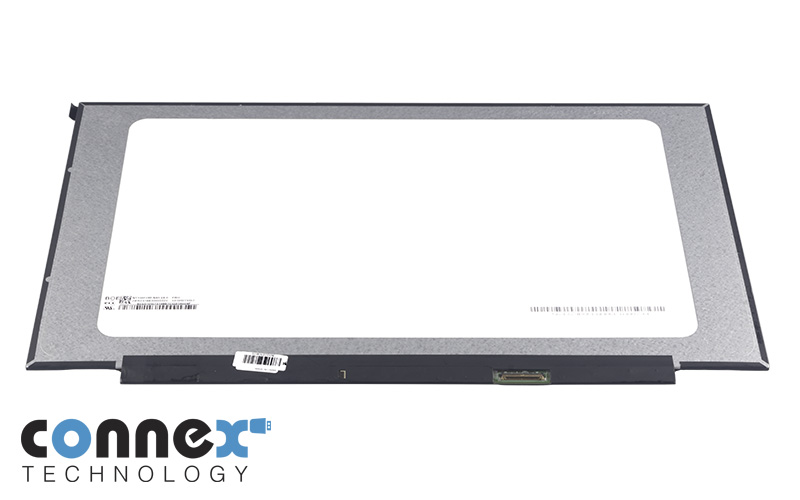

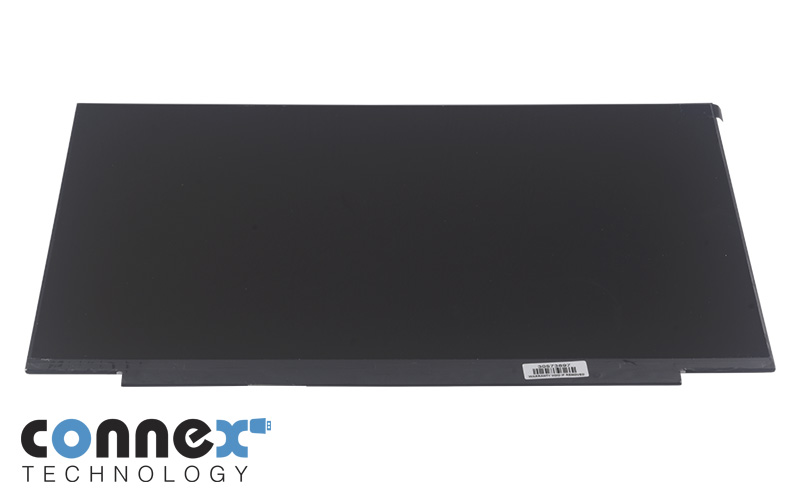

15.6" FHD LCD Screen - 1920X1080 - Matte Surface - 30-Pin eDP Bottom-Right Connector Socket - IPS - No Mounting Brackets

Home > Products > LCD Panel > 15.6" > 156CU

15.6" FHD LCD Screen - 1920X1080 - Matte Surface - 30-Pin eDP Bottom-Right Connector Socket - IPS - No Mounting Brackets - 260mm Wide Bottom Tab

Item code:

156CU

stock level: Please contact us for stock availability

Detailed information:

Screen Diagonal:    15.6"
Resolution:    FHD (1920X1080)
Surface Finish:    Matte
Connector Socket Type:    30-Pin eDP
Connector Socket Position:    Bottom-right
Panel Type:    IPS
Mounting bracket?    None
Bottom Tab Width:    260mm

Note

The width of MB156CS01-8 bottom tab is 247mm, so this can be used as 156CC and 156CU

Product compatibillty

Compatiblie part number

BOE

NT156FHM-N43 V8.0
NV156FHM-N4S V8.0

Lenovo

5D10V82435
5D11J12384
SD11J12383
SBB1K53480

Innolux

N156HCA-EAC Rev.C1
N156HGA-EA3 Rev.C5
N156HGA-EA3 Rev.C2
N156HGA-EA3 Rev.C3

AUO

B156HTN06.2

HKC

MB156CS01-8
MB156CN01-1
MC156CS08-1 with added brackets
MB156CS05-3

Can be used with the following device(s)

Lenovo

V15 G2-ITL Type 82KB
ThinkPad E15 Gen 4 Type 21E6
ThinkPad E15 Gen 4 Type 21E7
IdeaPad Slim 3 15AMN8 Type 82XQ
