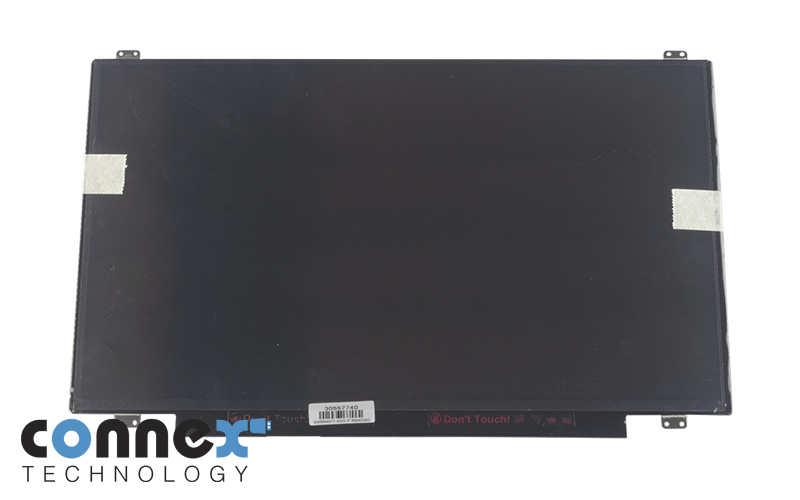

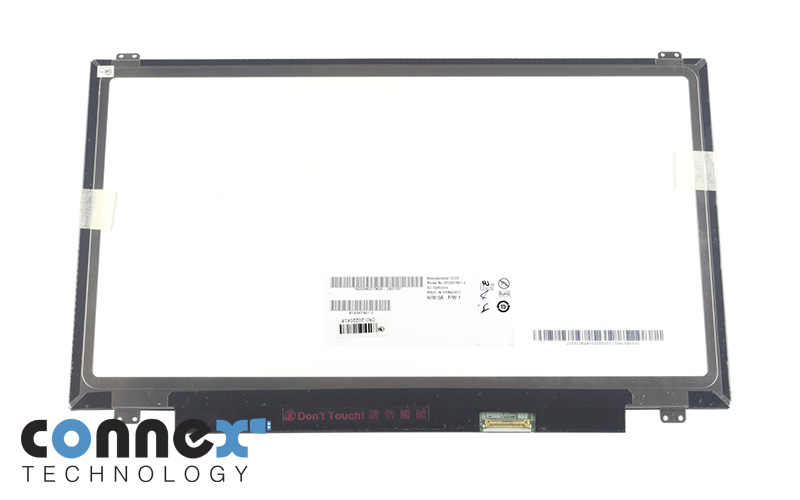

13.3" WXGA LCD Screen - 1366X768 - Slim Profile - Bottom-Right 30-pin eDP Connector - LED Back Light

Home > Products > LCD Panel > 13.3" > 133AH

13.3" WXGA LCD Screen - 1366X768 - Slim Profile - Bottom-Right 30-pin eDP Connector - LED Back Light - Glossy Surface

Item code:

133AH

stock level: Please contact us for stock availability

Detailed information:

Screen Diagonal:       13.3"
Resolution:       WXGA (1366X768)
Connector Type:       30-pin eDP
Surface finish:       Glossy
Connector Position:       Bottom-right
Backlight type:       LED
Thickness Profile:       Slim

Note

Compared to 133AP, the mounting brackets are further away from the left-hand side and right-hand side edges

Product compatibillty

Compatiblie part number

AUO

B133XTN01.2
B133XTN01.3

Ivo

M133NWN1 R3

Can be used with the following device(s)
